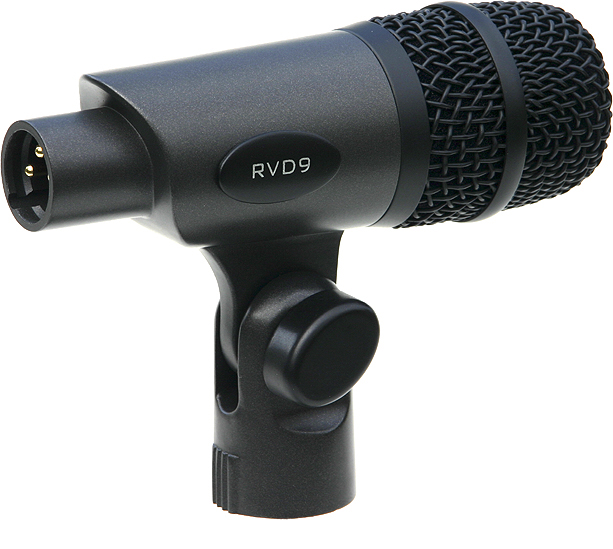

Technical Specifications of RVD9

Element: Moving Coil Dynamic
Polar Pattern: Cardioid
Frequency Response: 50Hz – 16kHz
Sensitivity: - 54dB (+/- 2dB) (0dB = 1V/Pa at 1kHz)
Output Impedance: 250. +/- 30% ( at 1kHz)
Max. Input SPL: 136dB ( at 1kHz 1% THD)
Net Weight: 320g

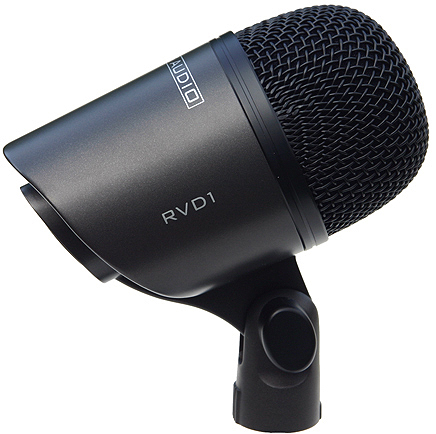

Technical Specifications of RVD1

Element: Moving Coil Dynamic
Polar Pattern: Cardioid
Frequency Response: 40Hz – 10kHz
Sensitivity: - 58dB (+/- 2dB) ( 0dB = 1V/Pa at 1kHz)
Output Impedance: 250. +/- 30% ( at 1kHz)
Net Weight: 490g

Accessories

Your Red5 Audio drum set comes bundled with
• Lockable flight case to provide maximum protection for your microphone
• Four adjustable drum mounts for the RVD9's.


Applications

The Red5 Audio drum set is obviously designed as a high quality set of microphones for recording a drum kit; however each of the individual microphones can also be used for a wide variety of applications. Some of the possible applications are:

RVD1
• Kick Drum
• Floor Toms
• Bass amplifiers

RVD9
• Snare Drum
• Toms
• Amplifiers
• Wind Instruments ( Brass etc.)
• Vocals

Features

RVD1 & RVD9's

• One RVD1 primarily intended for kick drum and four RVD9s primarily intended for snare drum and toms.
• Rugged construction comprising of solid zinc die-cast metal housing and hardened steel mesh grille.
• Cardioid polar patterns are used throughout the set to maximise the rejection of unwanted sound sources.
• Included with every set is four drum mounts to secure your microphones to the drums rims without the need for bulky microphone stands.
• Capable of handling very high sound pressure levels allowing for distortion free recording of even the lloudest source.
• High quality gold plated internal and external connectors. This prevents oxidisation of contacts, which can dramatically reduce the quality of your audio signal.
